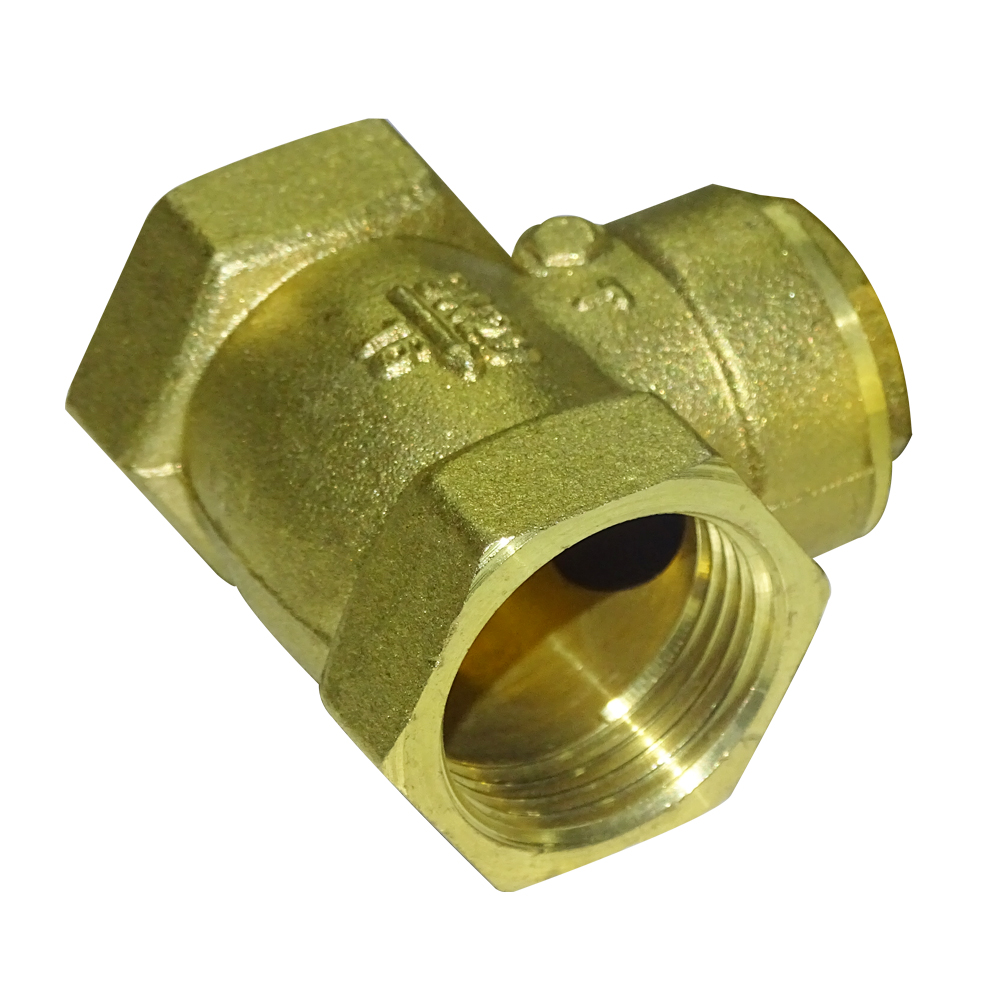

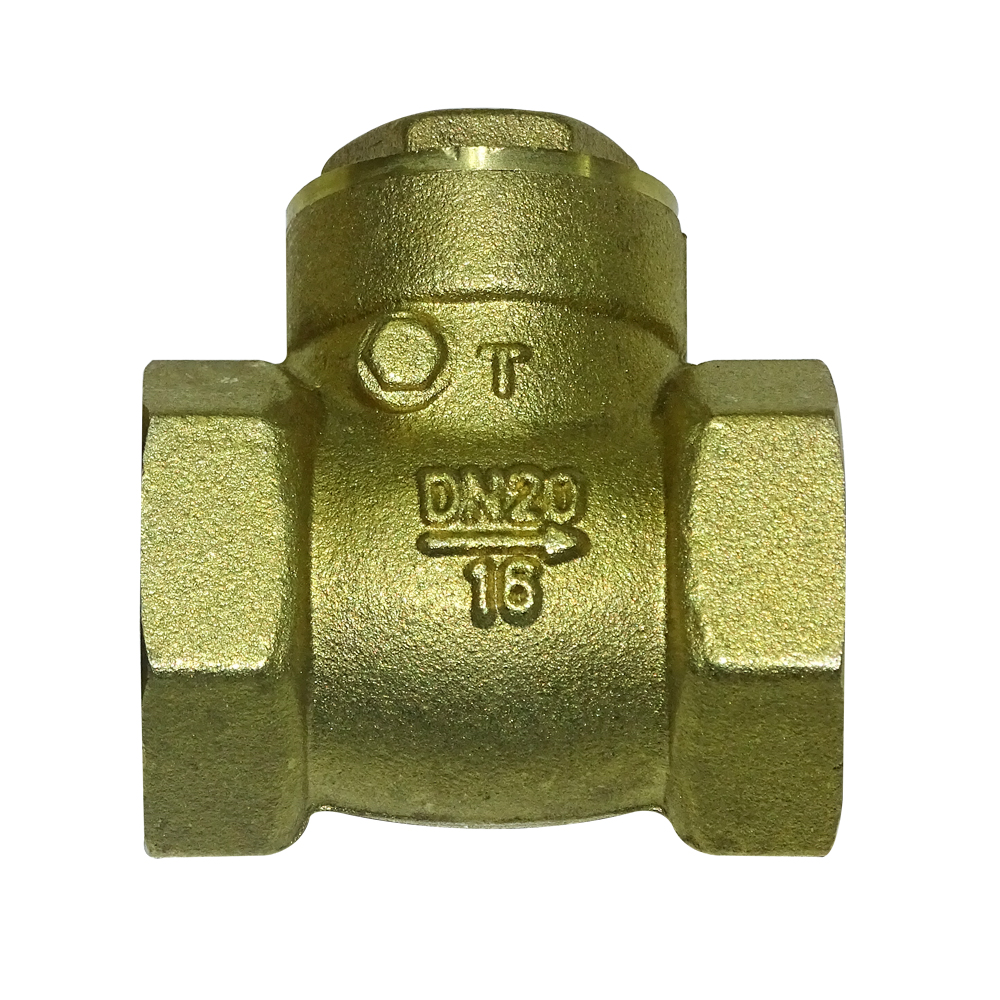

Brass Check Valve

Body material :Brass
Port Size:1/2"~4"(DN15 ~DN100)
Spring:Stainless steel
Pressure :Medium Pressure
Temperature :Medium Temperature
Thread Standard:ISO228/NPT/BSP/BSPT,etc

We're here to help:
Easy ways to get the answers you need.

chat now send message

Product description
Technical parameters
Inquiry

Brass Check Valve

Specifications

Smallest resistance with the fluid
Small force is needed when open and close the valve
CE,CCC,ISO9000

Suggestions on application of brass check valve

Smallest resistance with the fluid
Small force is needed when open and close the valve
Unlimited by the direction of medium
Resistance between the working medium and sealing surface is smaller than that stop valves when the valve is opened completely

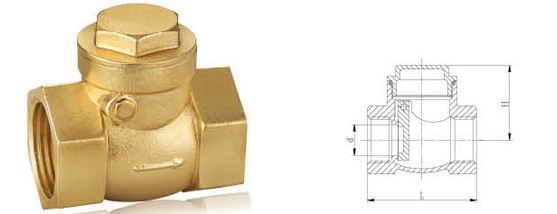

**Brass Check Valve**
Dn	Size	L	B	H
15	1/2	47	14	48.5
20	3/4	53	18	56.5
25	1	63	24	63.5
32	1-1/4	70	31	78
40	1-1/2	88	36	98
50	2	97	42	109
65	2-1/2	120	60	130
80	3	135	75	145
100	4	162	90	180
