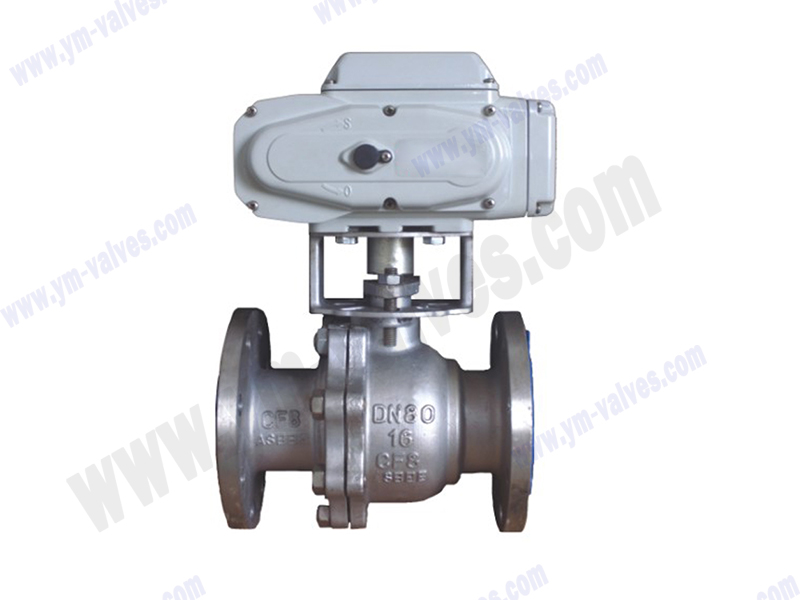

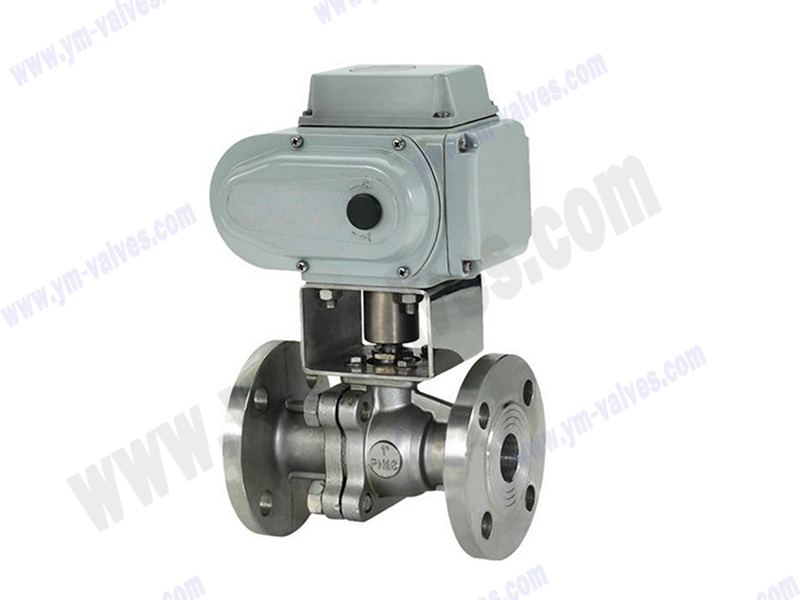

Valve parameters：

Size:1/2”-10”

Pressure:PN16-PN40

Body Materials:Stainless Steel ,CF8,CF8M

Ball Materials:SS304, SS316

Seal Materials:PTFE

Connection:flange

Drive type: Electric

Structure type:floating

Drawings and dimensions:

Features:

1. Fluid resistance is small, the resistance coefficient of fish length loudness equal to the pipeline;

2. Simple structure, small size, light weight;

3. Tight and reliable, good sealing, the vacuum system is also widely used;

4. Easy to operate, switch quickly, easy to control;

5. Easy maintenance, ball valve structure is simple, easy replacement demolition;

6. In the fully open or fully closed, the sealing material and media isolation, media will not cause erosion of the sealing material.
