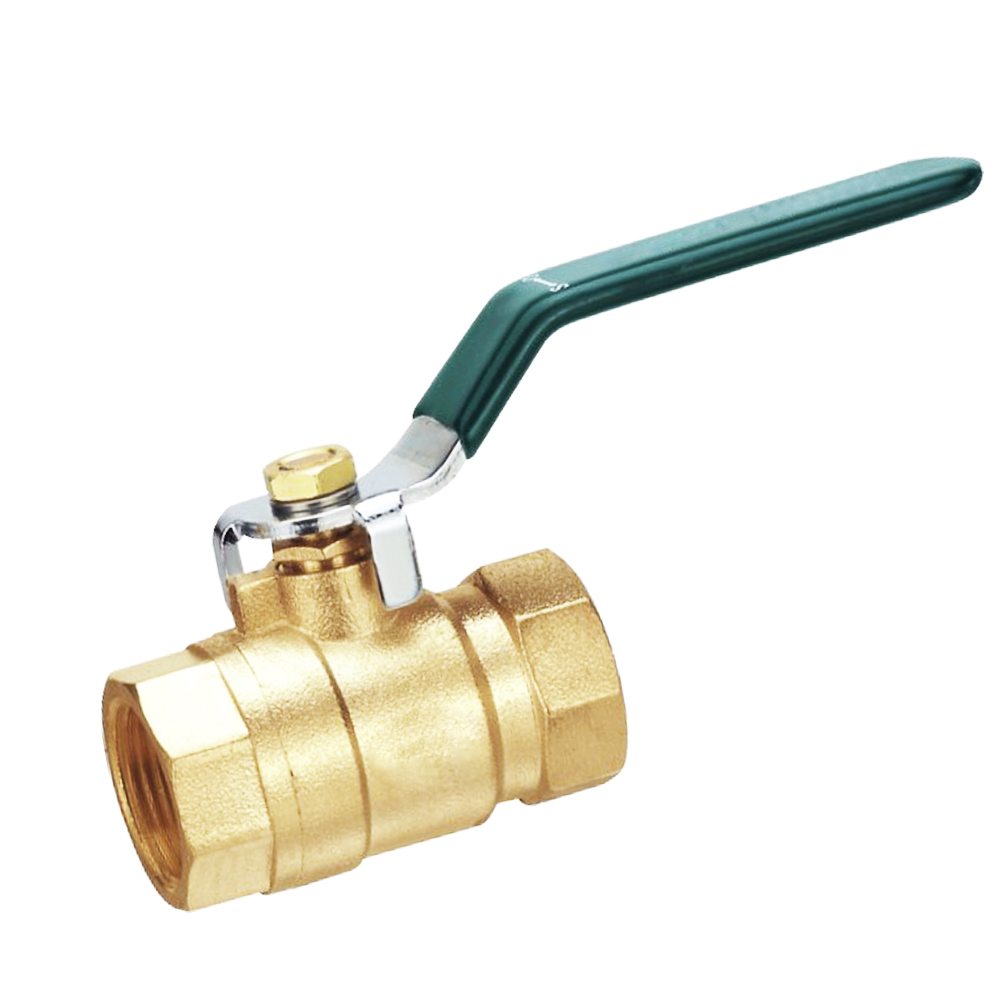

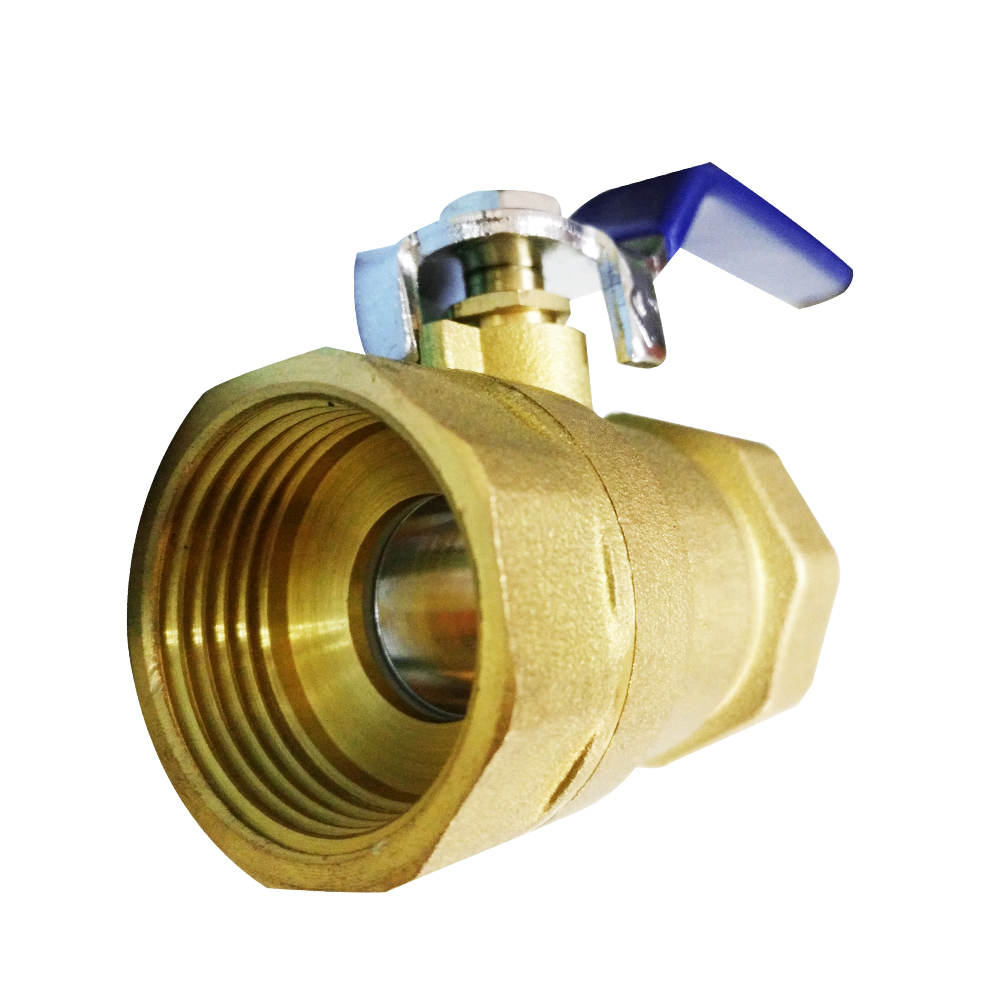

  • manual

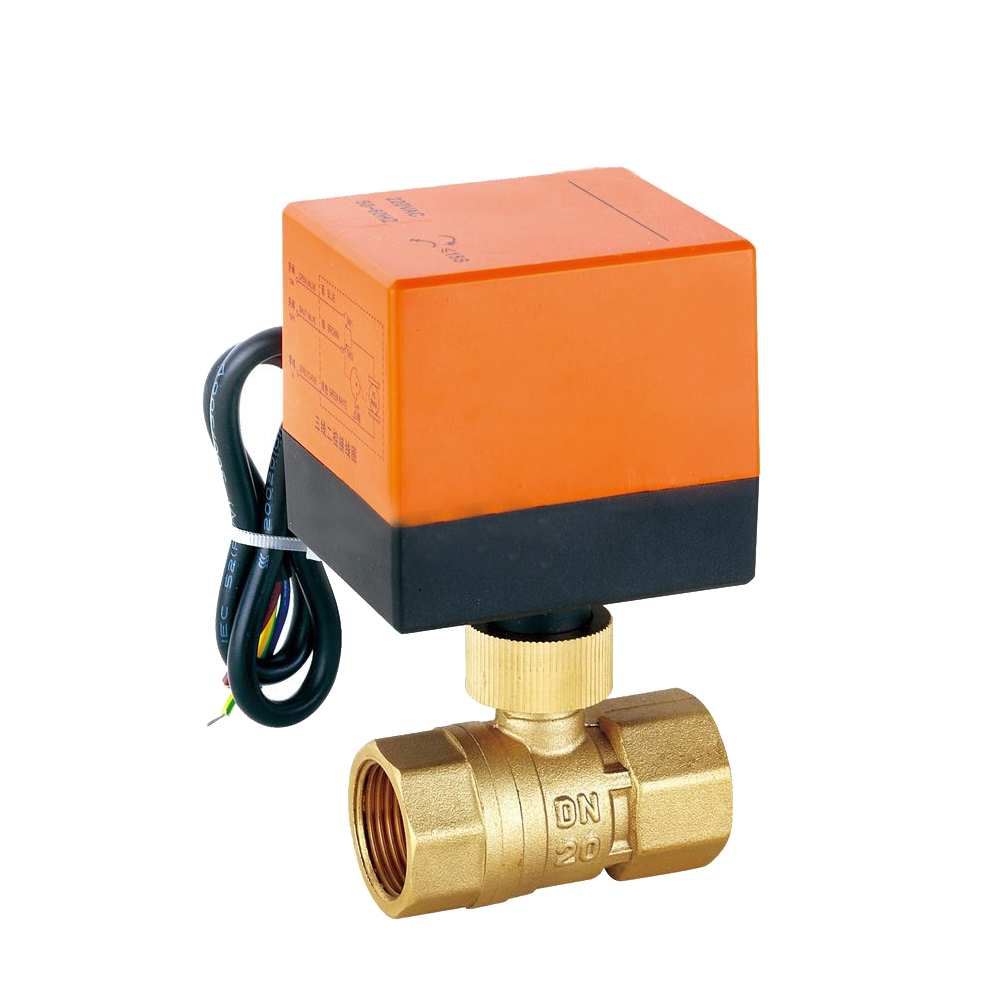

  • electric

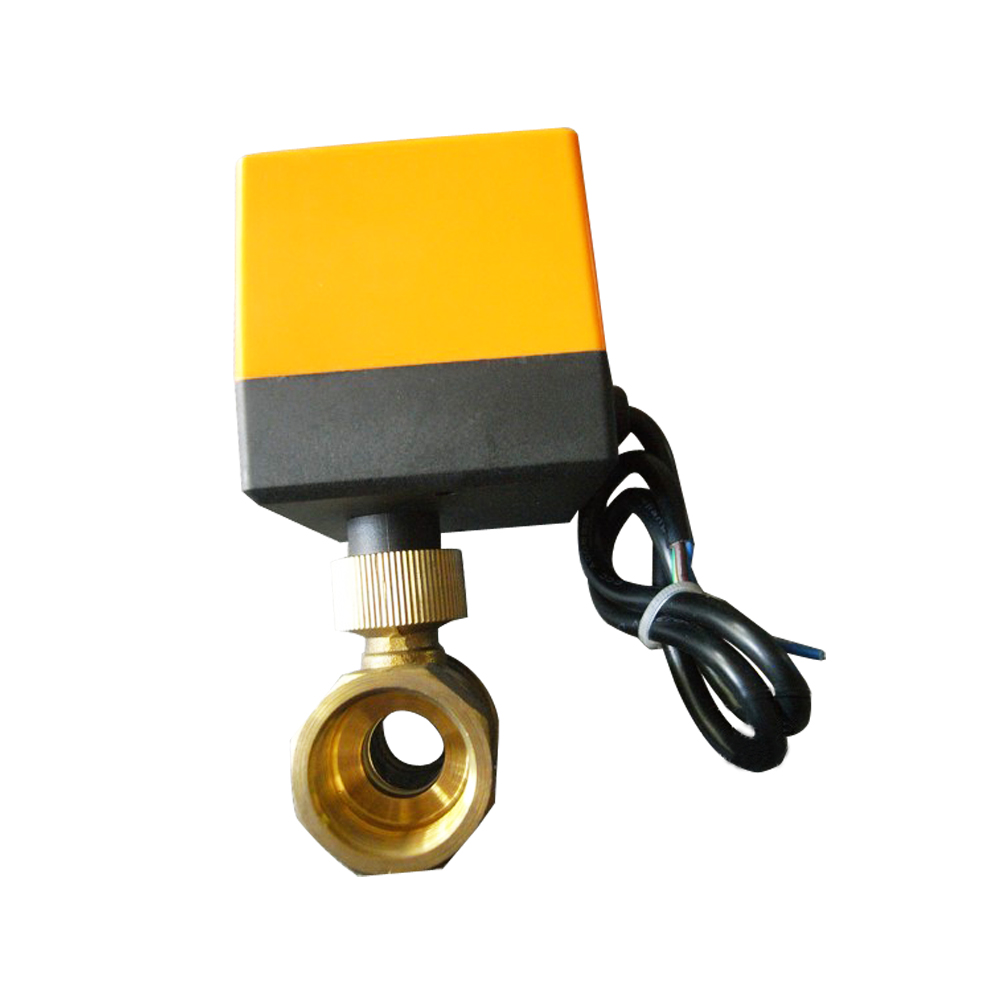

  • electric

BSP/BSPT/NPT thread Brass Ball Valve

  • Nominal pressure:medium
  • Working medium:water, gas, oil
  • Working temp:-20℃-120℃
  • Thread standard:NPT,BSPT,BSP,ISO228
  • Size:1/2"~4"
  • Power:Manual, electric, pneumatic

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Technical parameters
  • Inquiry

BSP/BSPT/NPT thread Brass Ball Valve

 1.Technical Standard:
 Body Brass,CW614N, CuZn39Pb3, CW617N, CuZn40Pb2, DZR,as per request
 Norminal Diameter 1/2"~4", DN15-DN100, can be customized
 Norminal Pressure 1.6 Mpa
 Working Medium Water, Non-causticity liquid, Saturated steam
 Working Temperature -20°C≤T≤100°C
 Handle:
Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly “T” type
 Thread ISO228/1,  BSP, BSPT, NPT, ANSI BI 20.1 or as per request
 Sealing:
EPDM, PTFE or Teflon





 BSP/BSPT/NPT thread Brass Ball Valve

Dn

Size

L

B

H

D

15

1/2

52

13

46

93

20

3/4

58

15

52

104

25

1

69

20

58

106

32

1-1/4

77

25

67

135

40

1-1/2

90

32

70

135

50

2

103

40

86

145

65

2-1/2

127

50

91

184

80

3

155

60

126

235

100

4

177

82

138


235
