Name |
brass 3 way ball valve |
|
Size |
1/2"-2" |
|
Technology |
Brass |
|
Material |
Brass,CF8/CF8M/WCB |
|
Connection type |
Female threaded |
|
Suitable medium |
water, oil, gas, acid |
|
Working pressure |
PN1.6-6.4Mpa |
|
Port |

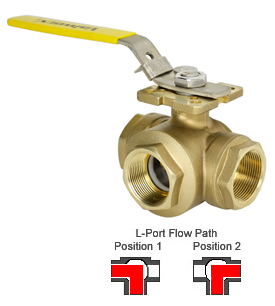

L/T Port |
|
Safety Feature |
locking operation |
Main Parts Materials
|
Parts |
Material |
|
Body |
Brass,WCB/CF8/CF8M |
|
Ball |
Stainless Steel 316/304 |
|
Stem |
Stainless Steel 316/304 |
|
Body Seal |
RTFE |
|
Thrust Washer |
RTFE |
|
Stem Packing |
PTFE |
|
Packing Gland |
Stainless Steel 304 |
|
Lock Washer |
Stainless Steel 304 |
|
Lever Handle |
Stainless Steel 304 |
|
Lock Nut |
Stainless Steel 304 |
|
Handle |
Stainless Steel 304 |
|

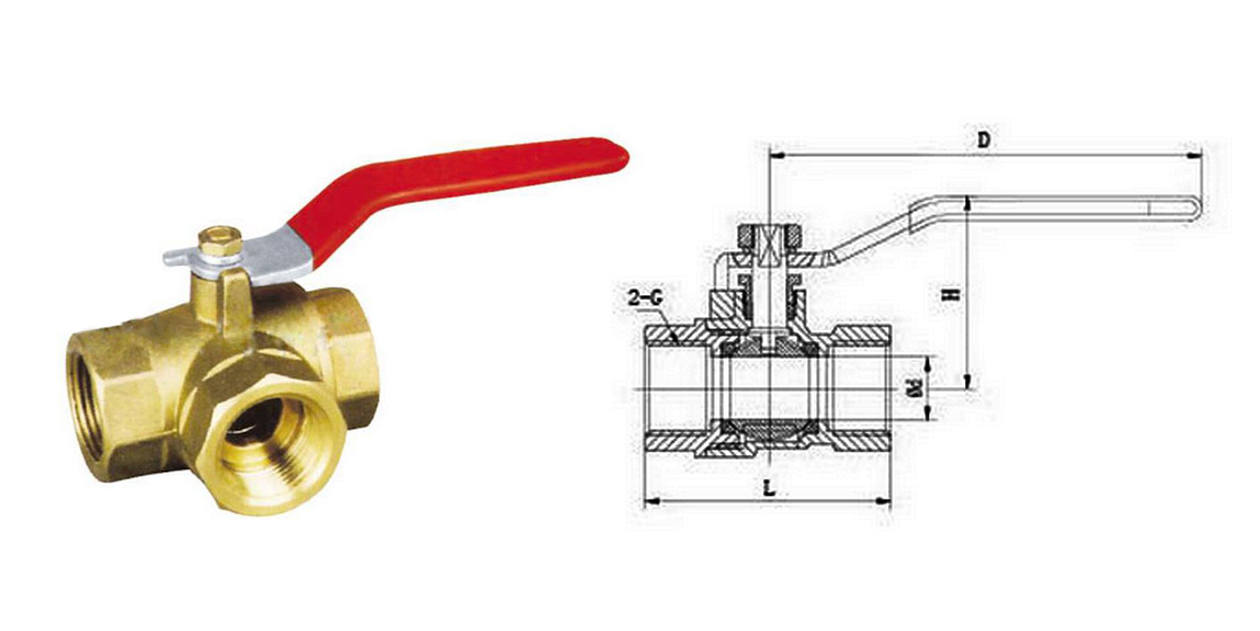

DN |
SIZE |
L |
d |
H |
D |
|
15 |
1/2" |
52 |
14 |
45 |
92 |
|
20 |
3/4" |
59 |
19 |
48 |
92 |
|
25 |
1" |
67 |
23 |
53 |
103 |
|
32 |
1 1/4" |
76 |
32 |
56 |
135 |
|
40 |
1 1/2" |
88 |
40 |
60 |
144 |
|
50 |
2" |
103 |
49 |
73 |
185 |
|
65 |
2 1/2" |
130 |
60 |
86 |
194 |
|
80 |
3" |
142 |
75 |
110 |
235 |
|
100 |
4" |
168 |
90 |
130 |
235 |
